You’ve got your 5-rib panels stacked and ready to go. Before you touch a single sheet, there’s one step that separates a clean, professional-looking roof from one that stair-steps along the eave and drives you crazy every time you look at it.
That step is squaring your roof.
At The Metal Shop, this is the first thing we walk customers through — whether you’re a seasoned contractor or a DIY homeowner tackling your first metal roof. Get this right, and every panel lies straight. Skip it, and you’ll be fighting drift the entire way up.

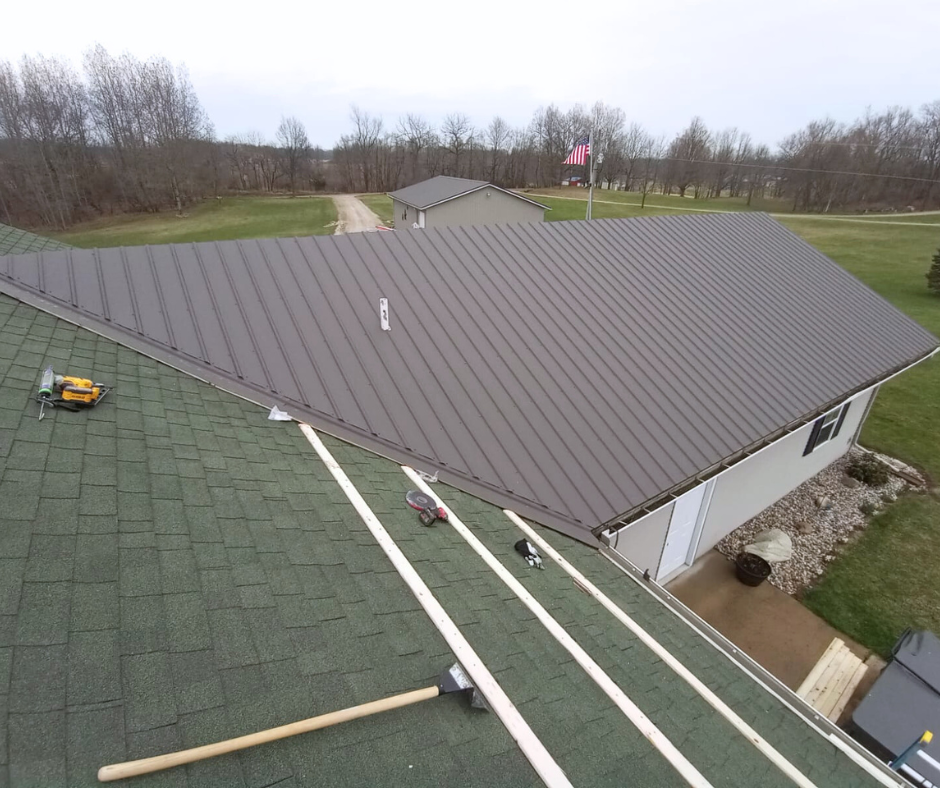

Why Squaring Matters for 5-Rib Panels
5-rib panels are unforgiving. Because the ribs run the full length of the panel, even a small angle off square compounds with every sheet you add. By the time you’re halfway up the roof, the bottom edge looks like a staircase instead of a straight line.
The fix is simple: snap a true reference line before panel one ever hits the deck.
What You’ll Need
- Tape measure (25 ft minimum — longer is better)
- Chalk line
- Pencil or marker
- A helper
The 6-8-10 Method: How The Metal Shop Does It
We use the 6-8-10 triangle method to establish a perfectly square reference line. This is based on the same math behind the classic 3-4-5 triangle — just scaled up so you’re working with larger, more accurate measurements on a real roof.
Here’s the principle: any triangle with sides in a 3:4:5 ratio creates a perfect 90-degree right angle. Double those numbers to 6:8:10, and you get the same true square with more accuracy across a wider span.
Step-by-Step
Step 1 — Find your starting corner. Pick the bottom corner of the roof where your first panel will begin. This is typically the rake edge on the low side of the roof.
Step 2 — Mark 6 feet along the eave. From your starting corner, measure 6 feet along the bottom edge (the eave) and make a mark.
Step 3 — Mark 8 feet up the rake. From that same starting corner, measure 8 feet straight up the rake edge (the side edge) and make a mark.
Step 4 — Measure the diagonal. Measure the distance between your two marks — the 6-foot mark on the eave and the 8-foot mark on the rake. If your corner is perfectly square, that diagonal will measure exactly 10 feet.
- If it measures 10 feet, you’re square. Snap your chalk line, and you’re ready to go.
- If it’s more or less than 10 feet, your corner isn’t square. Adjust the position of your starting panel until the diagonal hits 10 feet exactly.
Step 5 — Snap your reference line. Once you’ve confirmed your 10-foot diagonal, snap a chalk line along the rake edge from eave to ridge. This is your guide. Every panel you lay should align to this line.
Step 6 — Add additional reference lines. Don’t rely on just one line. Every 8–10 feet across the roof, snap a new parallel reference line. This keeps panels from drifting as you work across the slope.
Pro Tips from The Metal Shop
- Don’t trust the eave. On most Michigan homes and barns, the eave isn’t perfectly straight. Always square off a reference line — never off the edge of the building.
- Check your work often. After every 3–4 panels, hold a tape measure from your chalk line to the edge of your last panel. If it’s drifting, correct it now — not at the ridge.
- Measure twice, cut once. This is the most common mistake we see. A panel cut wrong wastes material and time.
- Use a longer triangle for bigger roofs. On a wide commercial or agricultural building, scale up to a 12-16-20 triangle for even more precision.
The Bottom Line
A straight, clean eave line starts before the first panel goes down. Two minutes with a tape measure and a chalk line saves hours of frustration — and keeps your roof looking sharp from the ground up.
If you have questions about laying out your 5-rib panels or need custom lengths cut to your exact measurements, give us a call or stop by. That’s what we’re here for.
📞 (269) 215-2003 | themetalshopllc.com Bellevue, MI — Factory Direct. Michigan Made.
FAQ
1: Do I need to square the roof if my building is new construction?
Yes. Even new framing can be slightly out of square. Always verify with the 6-8-10 method before laying panels.
2: What if my roof is really wide — will 6-8-10 still work?
Absolutely. Just scale up: 12-16-20 or even 18-24-30. The ratio stays the same, and your accuracy improves.
3: Can I use this method for standing seam panels, too?
Yes — the squaring process is the same regardless of panel profile. Get your reference line right first, every time.
